Einleitung & Datenblatt

Einleitung

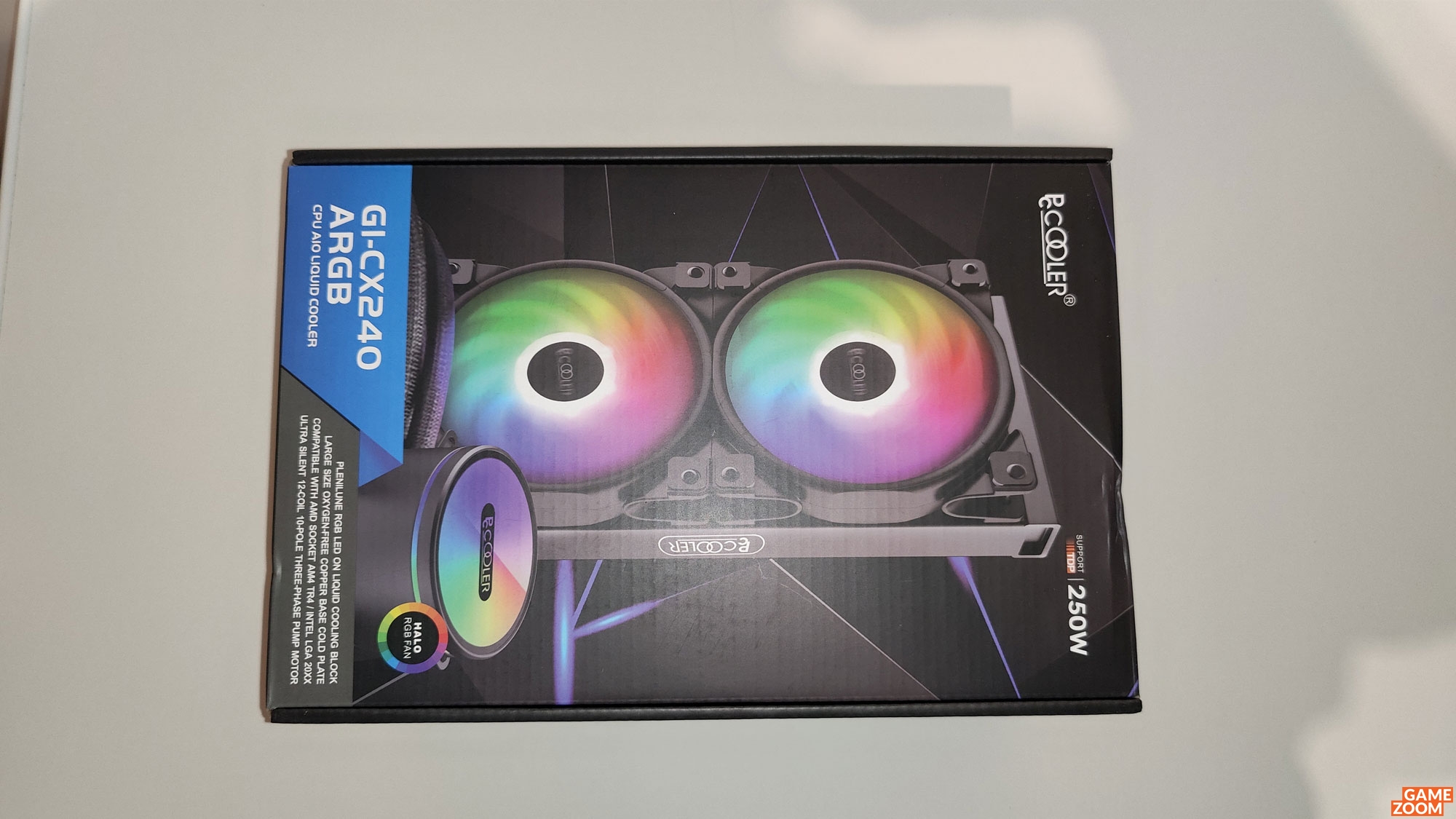

Der chinesische Hersteller PCCOOLER verstärkt sein Engagement im deutschsprachigen Raum. Vor einiger Zeit haben wir ein großes Paket mit diversen Testmustern erhalten. In der „ersten Testoffensive“ werfen wir einen kritischen Blick auf den AiO-Wasserkühler „GI-CX240 ARGB“. Mehr Details in unserem ausführlichen Bericht! Über PCCOOLER
Founded in 2005, Shenzhen Fluence Technology PLC. is mainly engaged in the R&D, production and sales of innovative heatsink for industry.Our products have been widely used in LED lighting, consumer electronics , and gradually expanding to 5G mobile devices and communication base stations cooling, smart city project construction, new energy vehicle thermal management and other fields. In May 2017, the company made its initial public offering and successfully listed on the GEM (STOCK CODE: 300647).
Datenblatt
• CPU Compatibility: Intel LGA2066/2011/1150/1151/1155/1156/775/1366 AMD TR4/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 • Radiator Dimension: 274×120×27mm • Radiator Material: Aluminum • Tube Material: PTFE tube + Rayon mesh cover • Tube Length: 400mm • Water block Dimension: 70×80×54.3mm • Cold Plate Material: Oxygen-free Copper • Pump Current: 0.46A • Pump Speed: 2600±10%RPM • Pump Bearing: Ceramic Bearing • Pump Life Expectancy: 50,000 Hrs. • Pump Noise Level: 16dB(A) • RGB Version: AURA 5V 3Pin addressable • Fan Dimension: 120×120×25mm • Included Fans: 2pcs • Fan Speed: 1000~2000±10%RPM • Max. Air Flow: 72CFM • Max. Static Pressure: 2.36mmH2O • Noise: 8~29.1dB(A) • Rated Voltage: 12VDC • Operating Voltage: 8~13.2VDC • Started Voltage: 7.5VDC • Rated Current: 0.22~0.39A(Fan Moto)+0.3A(RGB) • Power Input: 4.7W+1.5W • Bearing Type: Hydraulic Bearing
Preis: 96 Euro (Stand: 25.04.2021)
Testplattform
• Mainboard: ASUS ROG Crosshair VII Hero • Prozessor: AMD Ryzen 2700X @ 4.0 GHz x8 • Arbeitsspeicher: Ballistix Elite DIMM Kit 32GB, DDR4-3000 • Grafikkarte: Zotac Gaming GeForce RTX 2080 Ti AMP • Wärmeleitpaste: Arctic MX-5 (2021) • Netzteil: Seasonic Snow Silent 1050W • Soundkarte: Creative Sound BlasterX AE-5 • Festplatten: Toshiba OCZ RD400 512GB, M.2 • Gehäuse: be quiet! Dark Base Pro 900 • Betriebssystem: Windows 10 Home 64-Bit • Peripherie: Razer DeathAdder Chroma, Razer BlackWidow Ultimate Chroma und Astro Gaming A40 Headset • Monitor: LG Electronics 34UC79G-B • Zimmertemperatur: ca. 21°C
